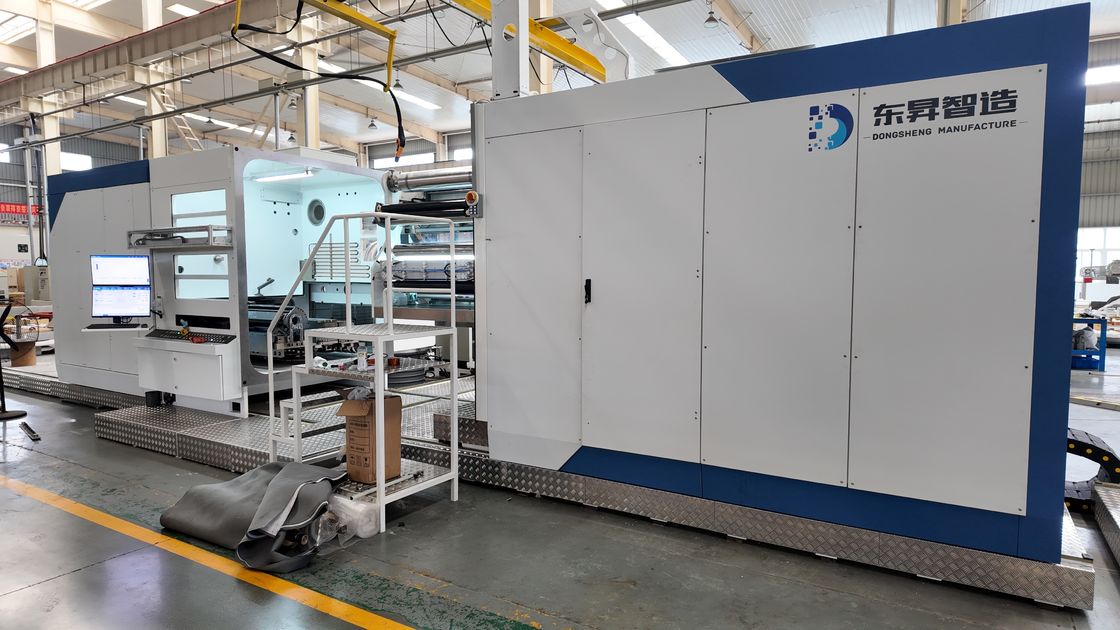

Continuous Metallization on PET and OPP Films with Capacitor Vacuum Metallizer

Name: Continuous Metallization on PET and OPP Films with Capacitor Vacuum Metallizer
Brand: Hefei Dongsheng Machinery Technology Co., Ltd
SKU: MCA-950U
Price: 506,900.00 USD
Availability: InStock

Ürün Ayrıntıları

Place of Origin: China

Marka adı: DST

Sertifika: CE Rosh

Model Number: MCA-950U

Ödeme ve Nakliye Şartları

Minimum Order Quantity: 1set

Fiyat: Based on Specification

Packaging Details: wooden case

Delivery Time: around 5 months

Payment Terms: T/T

Supply Ability: Five sets in 6 months

En İyi Fiyatı Alın

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  capacitor vacuum metallizer for PET films, OPP film metallization machine, vacuum metallizer with continuous coating


Substrate:	CPP,PET,BOPP	Substrate Width:	max.1300mm
Substrate Thickness:	0.1μm-1.6μm	Coating material:	Al.only;Zn.,Al.etc
Heating method:	Evaporation	Power supply:	A C380V 50Hz + PE
Coating speed:	max. 21 m/s	Core diameter (inside):	75 mm or 13 mm
Core material:	metal, plastic, impregnated paper etc	Core Components:	PLC, Engine, Motor,etc
Color:	customized	Coating Film:	BOPP/PET/CPP etc
Type:	Coating Production Line

Substrate:	CPP,PET,BOPP
Substrate Width:	max.1300mm
Substrate Thickness:	0.1μm-1.6μm
Coating material:	Al.only;Zn.,Al.etc
Heating method:	Evaporation
Power supply:	A C380V 50Hz + PE
Coating speed:	max. 21 m/s
Core diameter (inside):	75 mm or 13 mm
Core material:	metal, plastic, impregnated paper etc
Core Components:	PLC, Engine, Motor,etc
Color:	customized
Coating Film:	BOPP/PET/CPP etc
Type:	Coating Production Line

Açıklama

Continuous Metallization on PET and OPP Films with Capacitor Vacuum Metallizer

Product Specifications

Attribute	Value
Substrate	CPP, PET, BOPP
Substrate Width	max. 1300mm
Substrate Thickness	0.1μm-1.6μm
Coating material	Al. only; Zn., Al. etc
Heating method	Evaporation
Power supply	AC380V 50Hz + PE
Coating speed	max. 21 m/s
Core diameter (inside)	75 mm or 13 mm
Core material	metal, plastic, impregnated paper etc
Core Components	PLC, Engine, Motor, etc
Color	customized
Coating Film	BOPP/PET/CPP etc
Type	Coating Production Line

Product Overview

The MCA-650 CNC High Vacuum Metallizing Machine adopts internationally advanced technology design, enabling continuous one-sided aluminum and aluminum/zinc metallization on plastic films such as PET and OPP, to form the desired metallized film products.

Key Advantages

High uniformity with coating thickness uniformity below ±5%
Excellent quality for heat-sensitive films
Reduced waiting time with inverter frequency control
Compact design for space saving
User-friendly operation

Technical Specifications

Substrate	CPP, PET, PI, etc.
Substrate Width	max. 1200mm
Substrate thickness	0.1μm-1.5μm
Heating method	Evaporation boat
Power supply	AC380V 50Hz + PE
Core material	metal, plastic, impregnated paper
Core diameter (inside)	76 mm or 152 mm
Coating material	Al. only; Zn., Al.
Kind of coating	One side

Key Features

High precision winding-system: Digital winding electronic, unwinding with transverse oscillation possible with two different rewind modes
Spreader roller: Metal straight spreader rollers for uniform tension across the total web width
Combined mode evaporation system: Thermal evaporator for aluminum and radiation heated furnace for zinc evaporation
Advanced oil masking system: For production of unmetallised stripes with multi-position high precision adjustment
Precision process control: Industry PC control system with touch screen interface and safety interlocking

Packaging & Delivery

Prompt delivery
Professional logistic agent
Well-trained packing team
Comprehensive after-sale service

Competitive Advantages

High quality products at competitive prices
Guaranteed customs clearance
Excellent after-sale service
Flexible payment terms
International reputation for quality and service

Frequently Asked Questions

Q: Is Dongsheng a factory or trading company?

A: Dongsheng is a factory.

Q: Where is your factory located? Can I visit it before I place an order?

A: Our factory is located in Hefei, Anhui, China. Welcome to visit our factory.

Q: How about the warranty and after-sale service?

A: We provide 12 months warranty and lifetime technical support for all machinery. The response is available within 12 hours while the solution for troubleshooting is provided within 48 hours.

Q: Payment Terms

A: TT 30% down payment, 70% before shipment.

Q: Machine installation

A: We could assign the technician to the place for the on-site installation if requested by the purchaser.

Q: How do you control your quality?

A: Each process will be tested by our inspection department to make sure the product quality.
